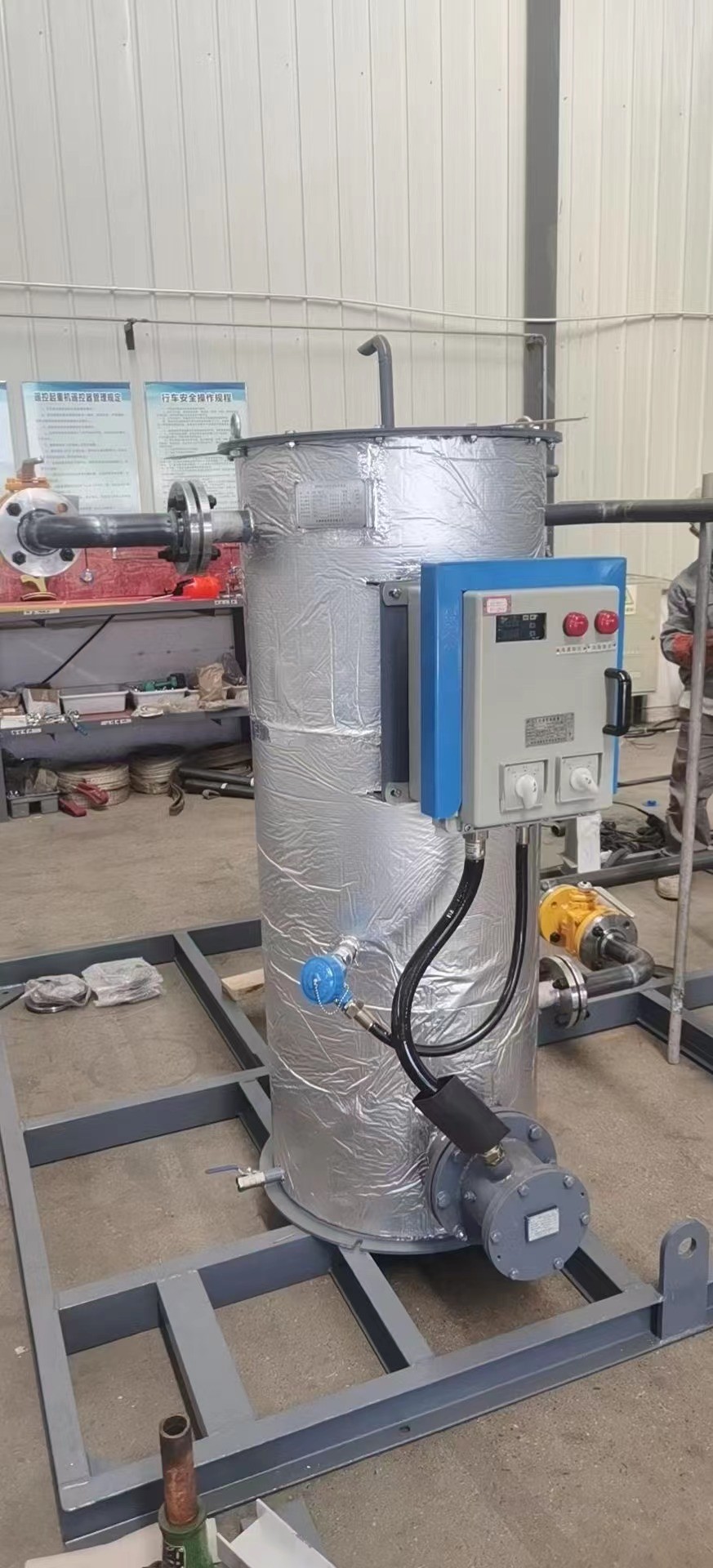

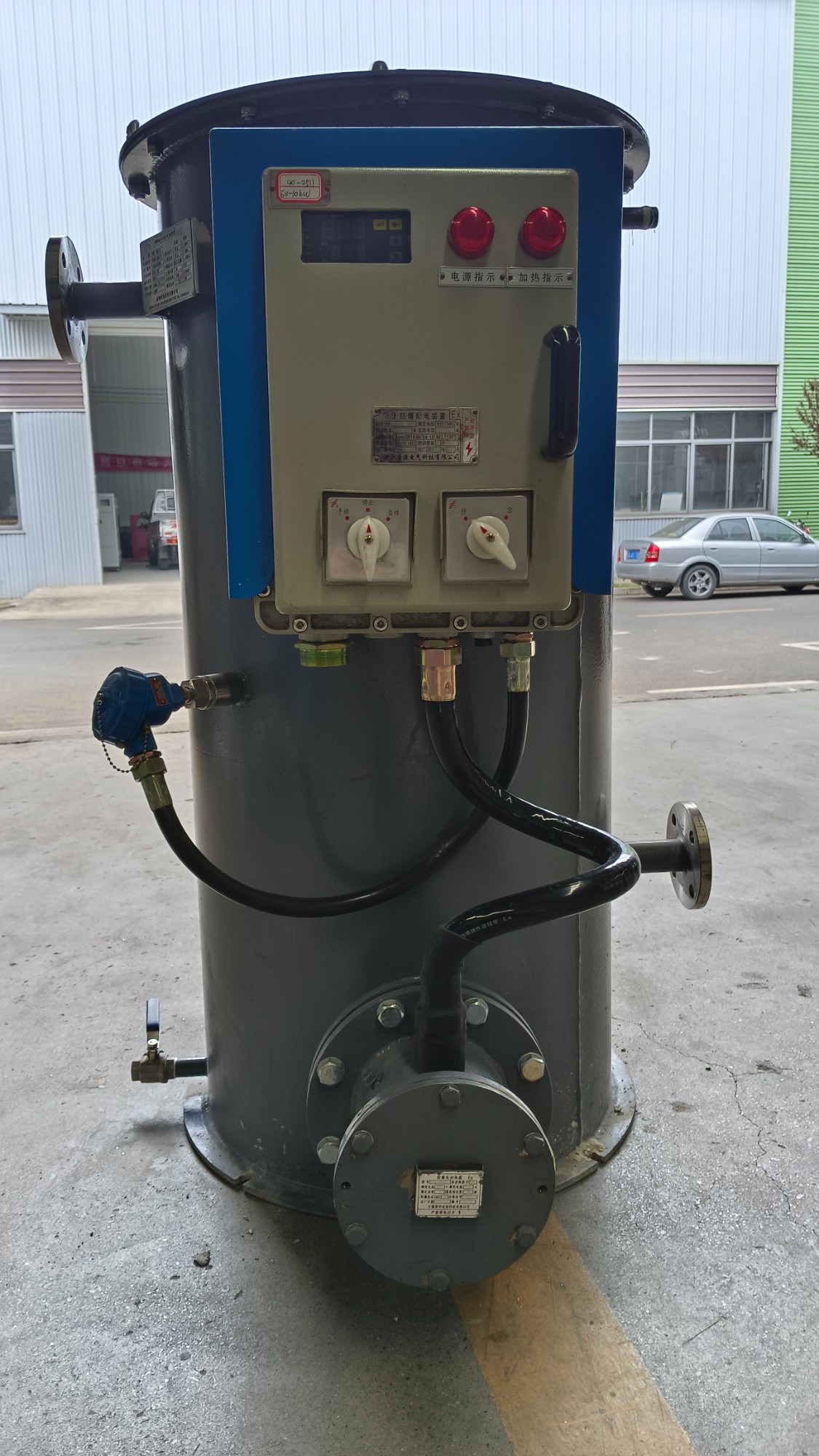

Circulating Water And Steam Heating Vaporizer

Circulating Water And Steam Heating Vaporizer

The working principle of this product: We first heat up the water in the tank body either by circulating water or by water that is heated by steam, then heat up the cryogenic liquid (LOX, LIN, LAR, LCO2, LNG, LC2H4, LPG) in the heat exchange tubes. Thanks to the advanced steam  constant temperature control system, and the gasification volume is very stable. The outlet temperature is room-temperature or can be set according to clients’ demand.

Suitable medium: LOX, LIN, LAR, LCO2,LNG, LC2H4, LPG, etc.

Work pressure: 0.8-40.0Mpa

Capacity: 1000-80,000Nm³/h

Major advantages:

High efficiency heat exchange pipe process design;

Special stainless steel heat exchange pipe for cryogenic liquid, more durable;

Long time continuous use can be guaranteed thanks to the double-way design of UK SPIRAX-SARCO steam control valve ;

Quieter operation, no noise and vibration thanks to UK SPIRAX-SARCO steam spraying device;

The surface is covered with imported painting, can keep well for longer time;

Water temperature is uniform thanks to the imported LG hot water circulating pump;

The whole set is made according to oxygen and food grade standard;

Full parts are included, every vaporizer contains the main body, steam control equipment, steam spraying device, control box, liquid level meter, thermometer, inlet valve,drain valve and so on.

Optional configurations for customers:

For the materials of the tank body, carbon steel or stainless steel are both available;

The acousto-optic alarm of the outlet temperature;

Emergency cutting off device;

The whole equipment can be skid-mounted but flow will be smaller;

Removable heat exchanger is available;

We can design and manufacture according to electronic grade standard;

It can adopt anti-explosion electric control box and anti-explosion electric heating equipment;
