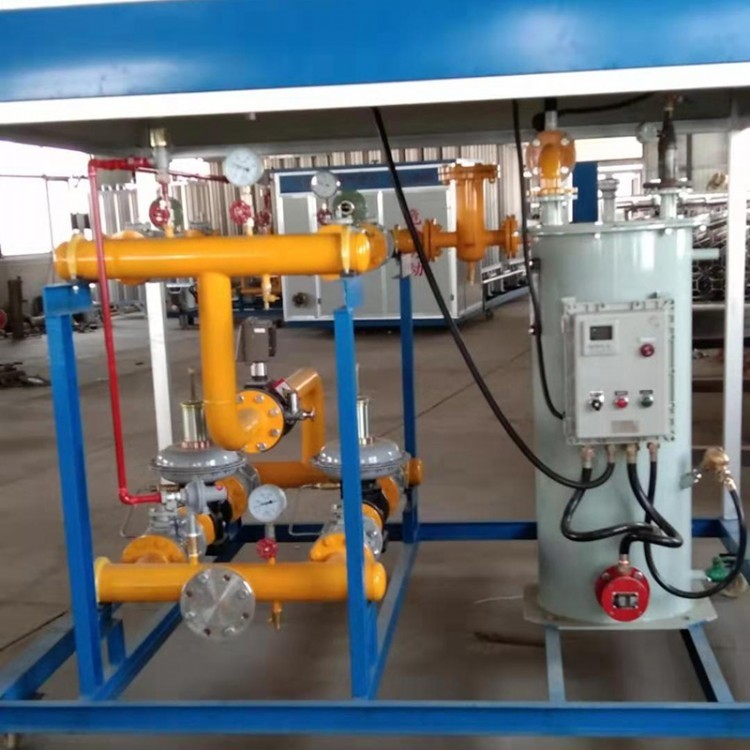

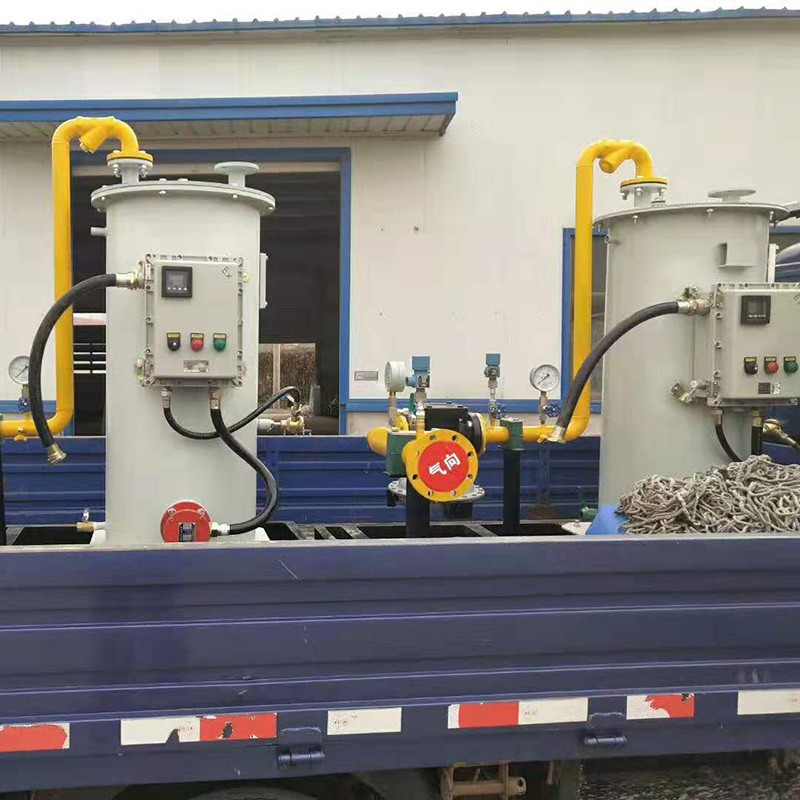

Electric Heating Vaporizer

Electric Heating Vaporizer

The working principle of this product: We first heat up the water in the tank body by high efficiency electric heating equipment, then heat up the cryogenic liquid (LOX, LIN, LAR, LCO2, LNG, LC2H4, LPG) in the heat exchange tubes. Thanks to the advanced water temperature control system, and the gasification volume is very stable. The outlet temperature is room-temperature or can be set according to clients’ demand.

Suitable medium: LOX, LIN, LAR, LCO2,LNG, LC2H4, LPG, etc.

Work pressure: 0.8-40.0Mpa

Capacity: 50-20,000Nm³/h

lf larger flow, we can use the combination units.

Major advantages:

Tailor-made high efficiency electric heating equipment, working life can at least last for 18 months before replacement;

Automatic and semiautomatic double circuits’ temperature control box, safe and reliable,can work without intermission;

High grade special cryogenic stainless steel heat exchange tubes, compact design and durable;

The surface is covered with imported painting, can keep well for longer time;

Water temperature is uniform thanks to the imported LG hot water circulating pump;

When working, it is quieter, no noise, no vibration;

The whole set is made according to oxygen and food grade standard;

Full parts are included, every vaporizer contains the main body, electric heating equipment, control box, liquid level meter, thermometer, inlet valve, blow down valve and so on.

Optional configurations for customers:

For the materials of the tank body, carbon steel or stainless steel are both available;

The acousto-optic alarm of the outlet temperature;

Emergency cutting off device;

The whole equipment can be skid-mounted;

Siemens electrical apparatus is available;

We can design and manufacture according to electronic grade standard;

It can adopt anti-explosion electric control box and anti-explosion electric heating equipment;
