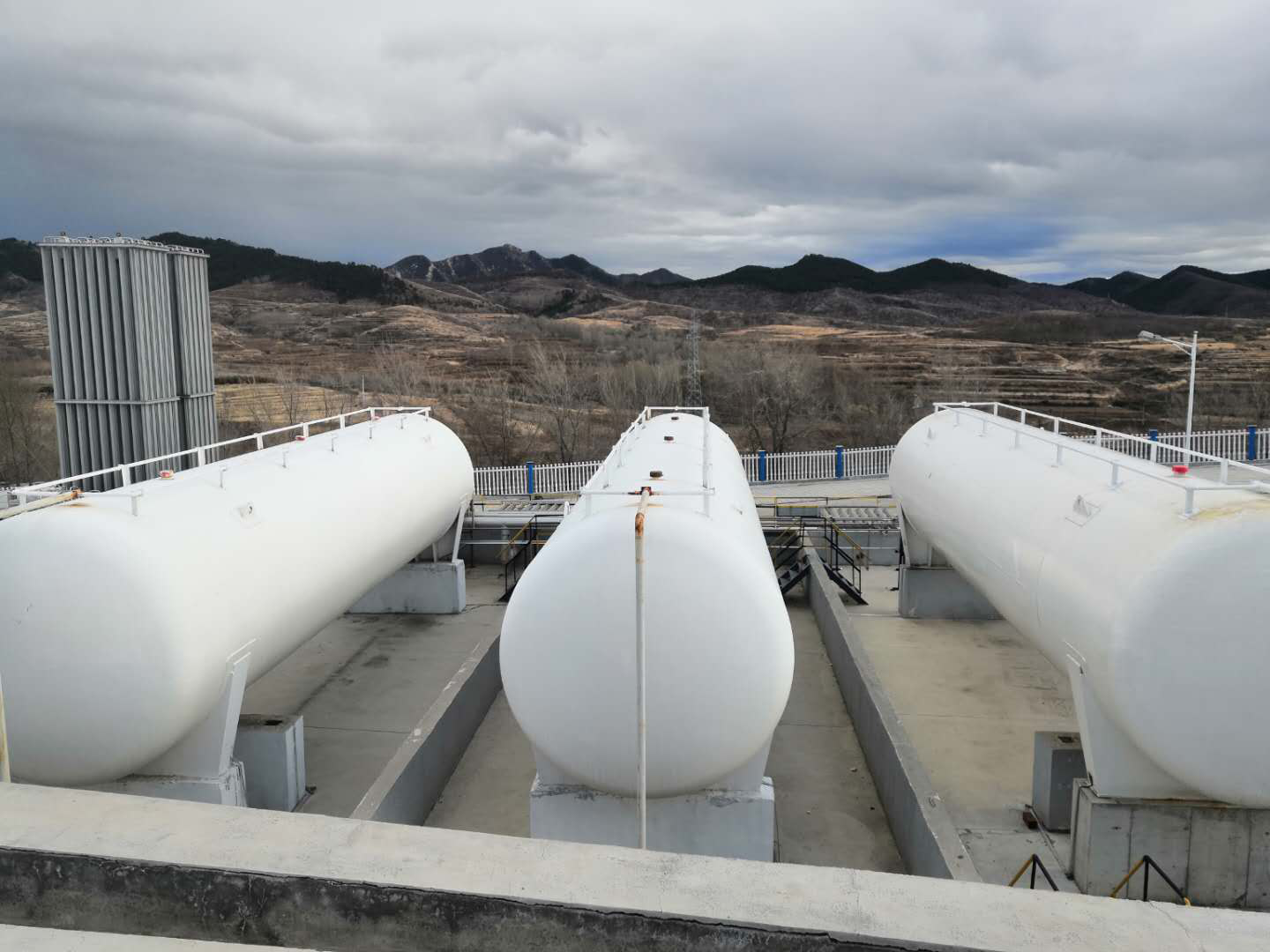

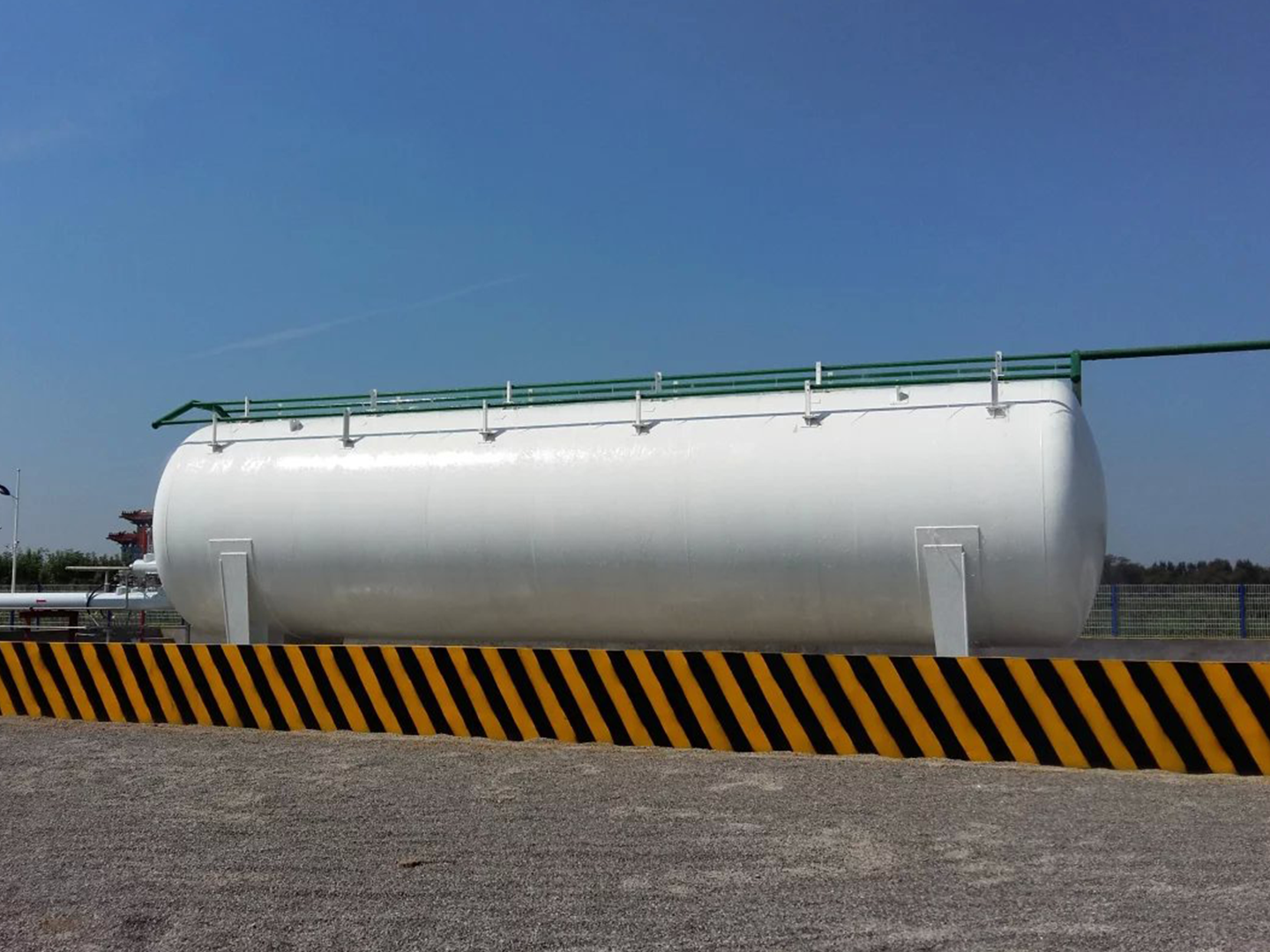

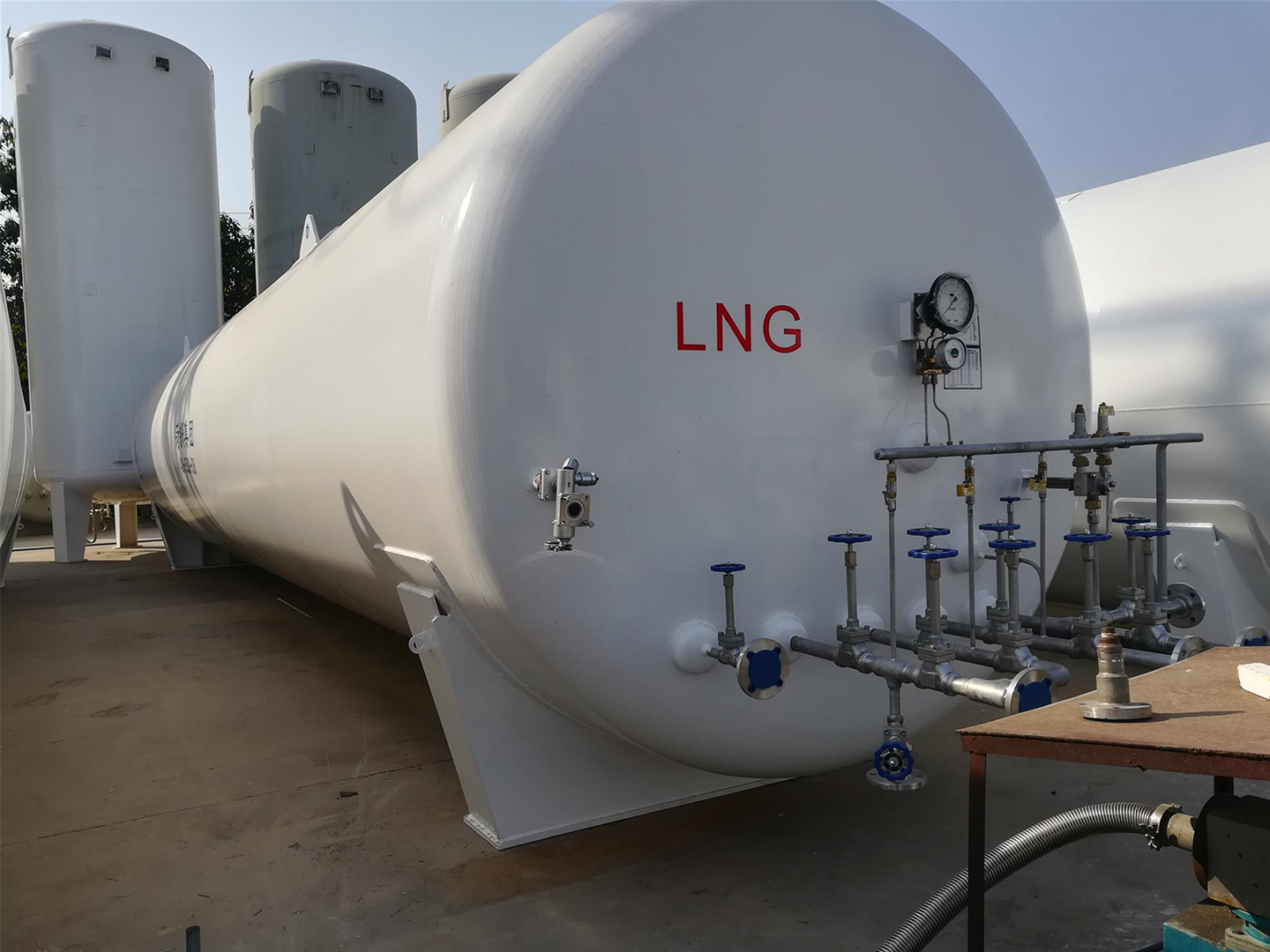

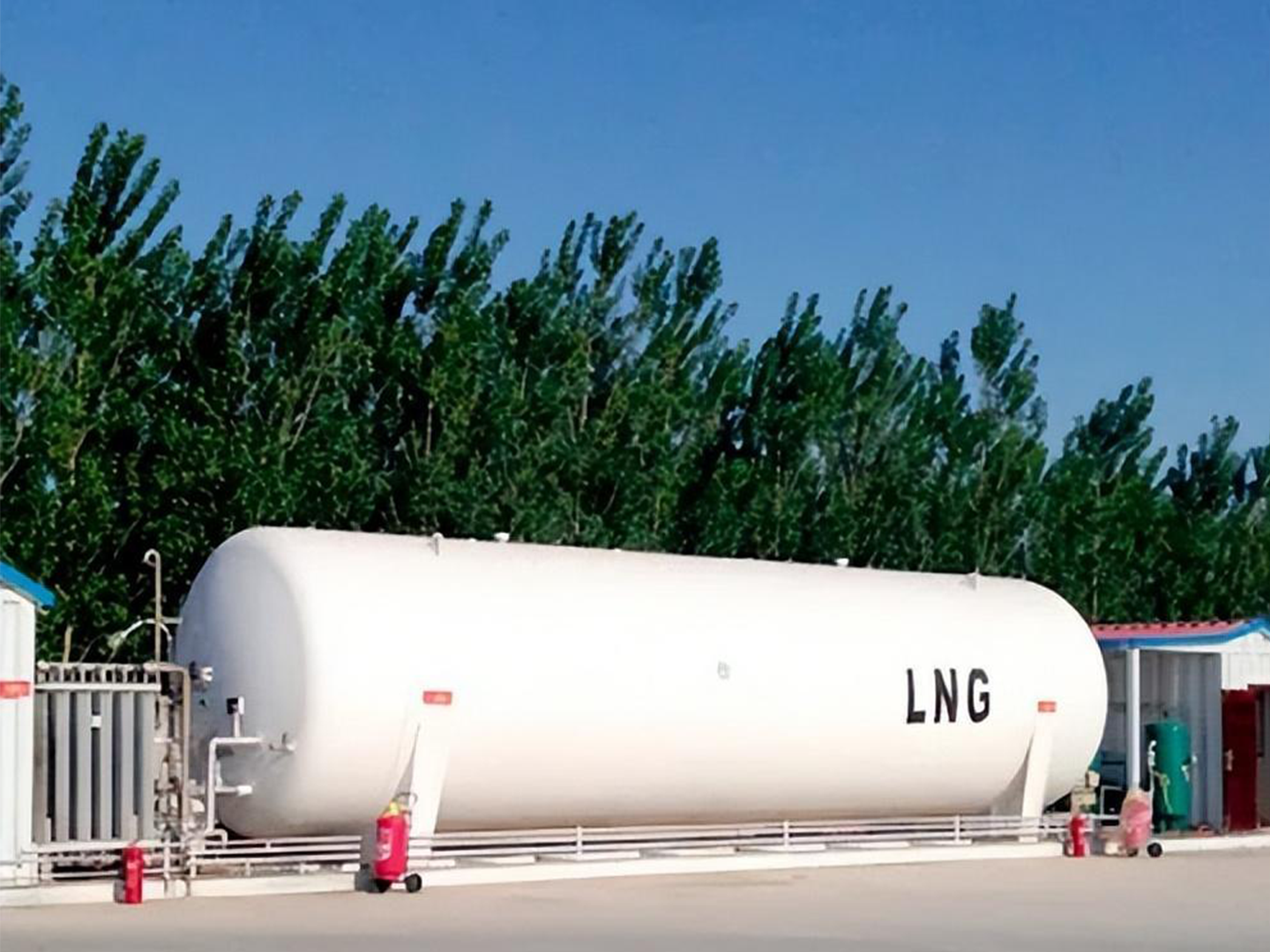

Cryogenic Storage Tanks for LNG

Cryogenic Store Tanks for LNG

Our company offer different sizes of LNG Cryogenic Store Tanks and export to African markets like Nigeria, Ghana, South Africa and South East Asia like Vietnam, Cambodia and Thailand for the moment.

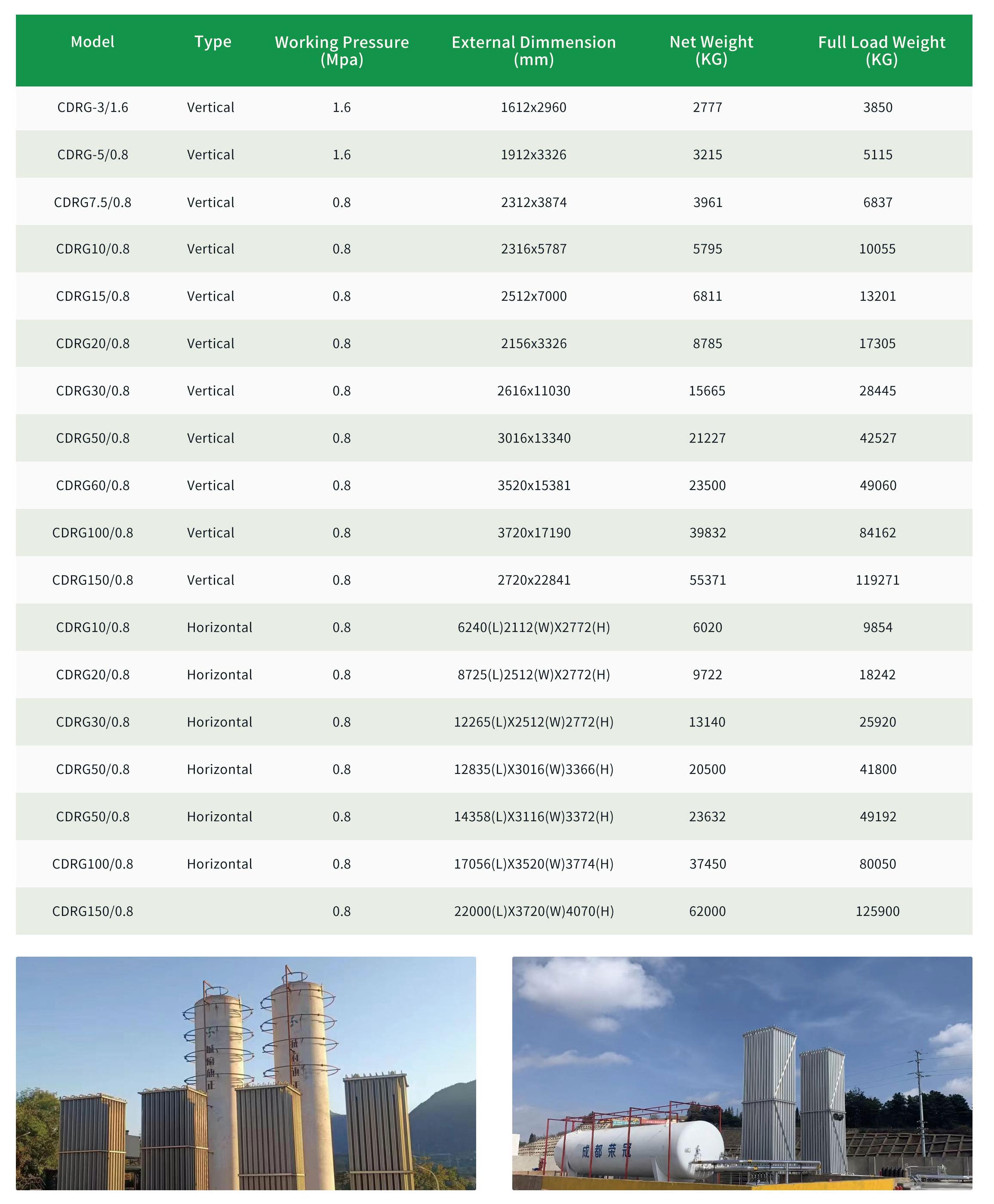

Our Cryogenic storage tanks are strictly in accordance with national standards, such as GB150, GB18442, etc. These tanks with various working pressure and specification can be widely used in the storage and usage of liquefied natural gas, oxygen, nitrogen, argon, carbon dioxide, ethylene, etc. For Micro-tank, the volume ranges from 1m3~7.5m3, working pressure ranges from 1.6Mpa~3.6Mpa. For standardized cryogenic tank, volume ranges from 5m3~150m3, working pressure ranges from 0.8Mpa~1.6Mpa.

Our cryogenic storage tanks have adopted special high vacuumed thermal insulation technology, which ensures excellent thermal insulation performance, enduring vacuum maintenance, lower use-cost. Modularization pipeline design and advanced configuration highly improves the performance and endurance, decreases the maintenance cost, enhances you competitive advantage.

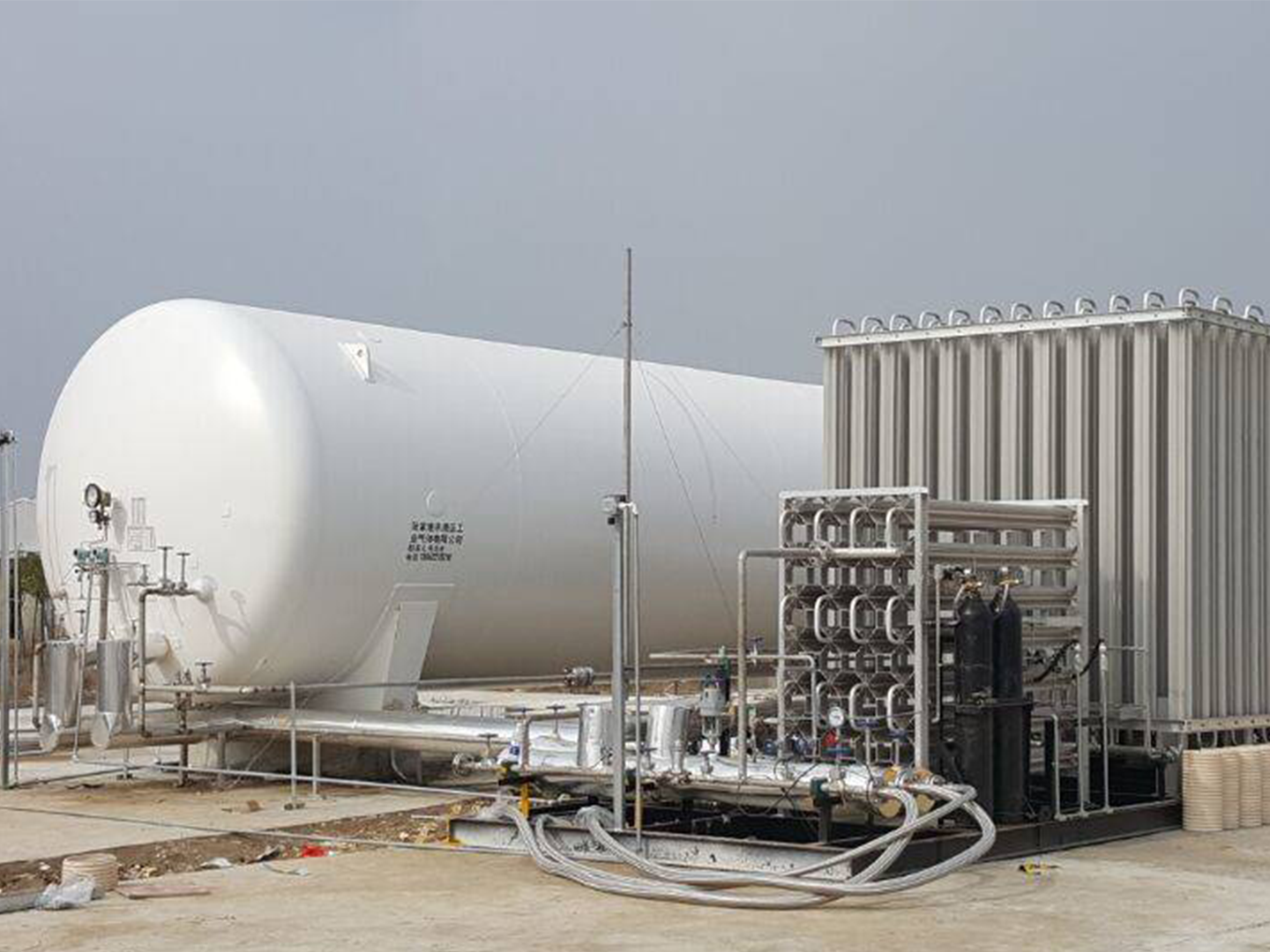

We are capable of customizing cryogenic storage tanks with volume up to 200m3 or even higher in accordance with customers’ requests, and we are able to supply various equipment such as ambient air vaporizers, pressure regulating & metering skids, buffer tank, combined pressure regulating device, (PCM)PLC control system( unattended operation), EPC turnkey projects.
